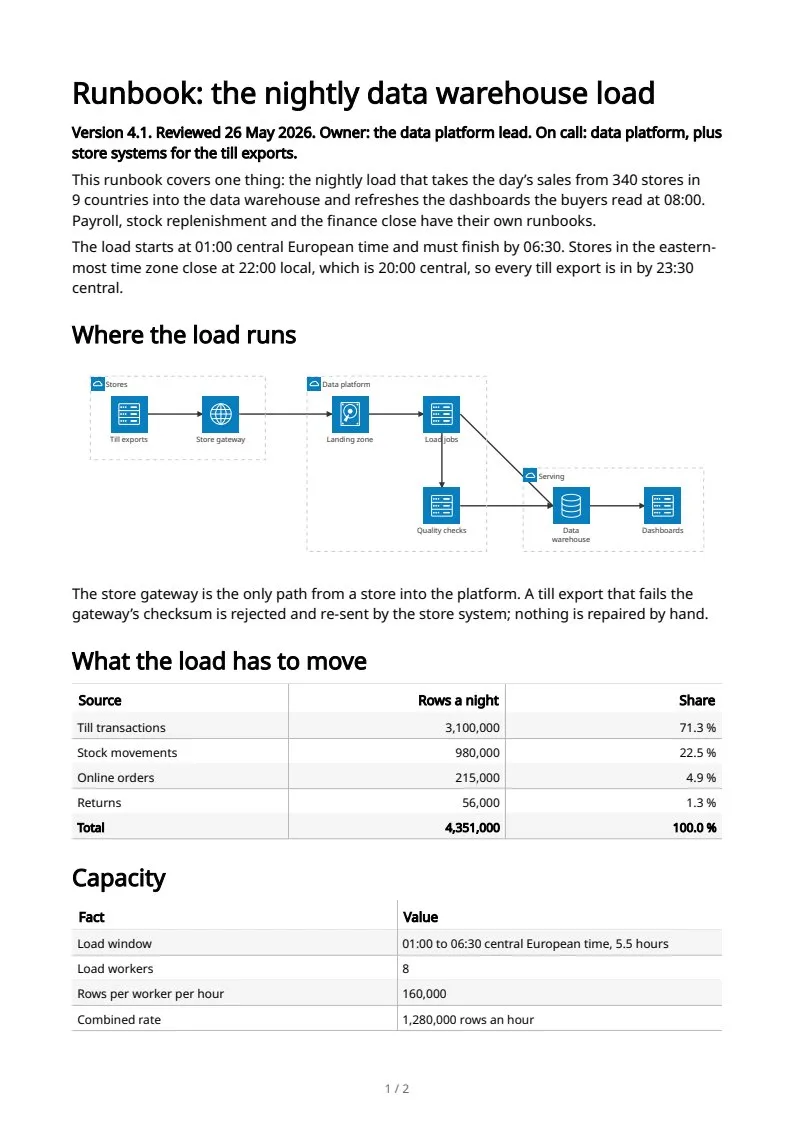

# Runbook: the nightly data warehouse load

**Version 4.1. Reviewed 26 May 2026. Owner: the data platform lead. On call: data platform, plus store systems for the till exports.**

This runbook covers one thing: the nightly load that takes the day's sales from 340 stores in 9 countries into the data warehouse and refreshes the dashboards the buyers read at 08:00. Payroll, stock replenishment and the finance close have their own runbooks.

The load starts at 01:00 central European time and must finish by 06:30. Stores in the easternmost time zone close at 22:00 local, which is 20:00 central, so every till export is in by 23:30 central.

## Where the load runs

```mermaid
architecture
title Where the nightly load runs
group stores(cloud)[Stores]
service tills(server)[Till exports] in stores
service gateway(internet)[Store gateway] in stores
group platform(cloud)[Data platform]
service landing(disk)[Landing zone] in platform
service jobs(server)[Load jobs] in platform
service quality(server)[Quality checks] in platform
group serve(cloud)[Serving]
service dw(database)[Data warehouse] in serve
service dash(server)[Dashboards] in serve
tills:R --> L:gateway
gateway:R --> L:landing
landing:R --> L:jobs
jobs:B --> T:quality
jobs:R --> L:dw
quality:R --> L:dw
dw:R --> L:dash
```

The store gateway is the only path from a store into the platform. A till export that fails the gateway's checksum is rejected and re-sent by the store system; nothing is repaired by hand.

## What the load has to move

| Source | Rows a night | Share |
|:-------|-------------:|------:|
| Till transactions | 3,100,000 | 71.3 % |
| Stock movements | 980,000 | 22.5 % |
| Online orders | 215,000 | 4.9 % |
| Returns | 56,000 | 1.3 % |
| **Total** | **4,351,000** | **100.0 %** |

## Capacity

| Fact | Value |
|:-----|:------|
| Load window | 01:00 to 06:30 central European time, 5.5 hours |
| Load workers | 8 |
| Rows per worker per hour | 160,000 |
| Combined rate | 1,280,000 rows an hour |
| Time needed at the full rate | 3 hours 24 minutes |
| Spare inside the window | 2 hours 6 minutes |
| Rate with one worker lost | 1,120,000 rows an hour, 3 hours 53 minutes |
| Rate with two workers lost | 960,000 rows an hour, 4 hours 32 minutes |

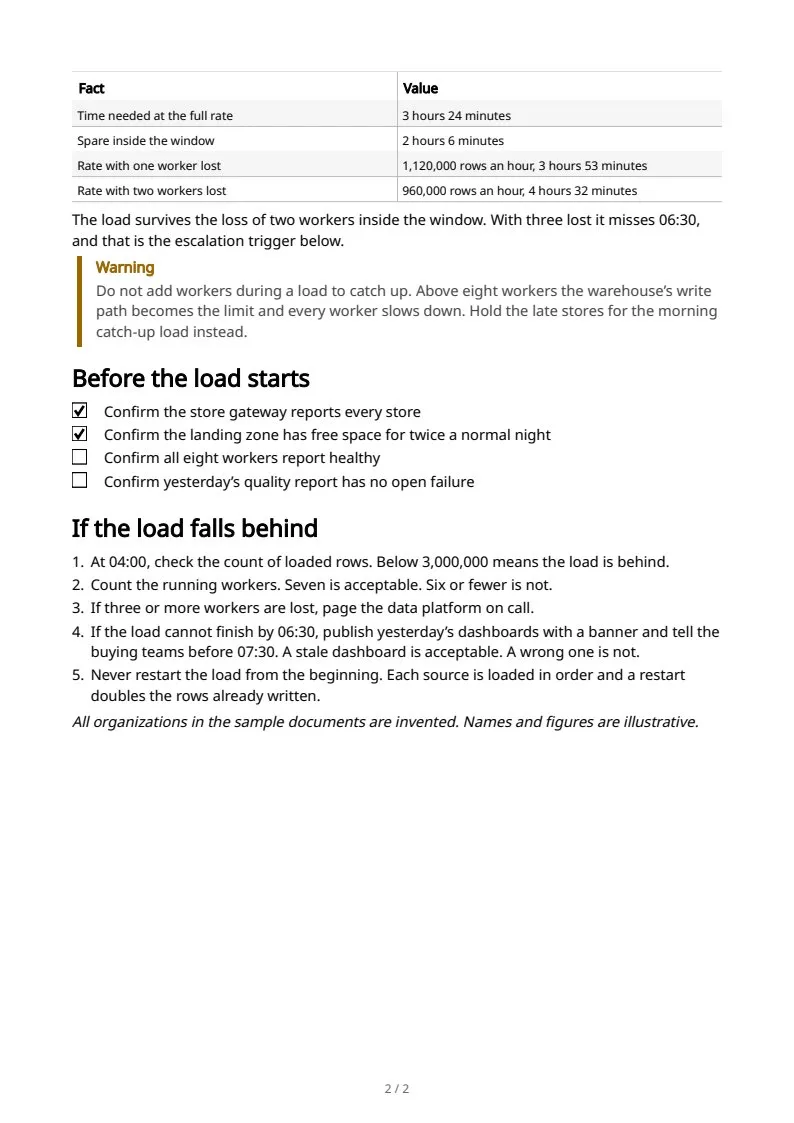

The load survives the loss of two workers inside the window. With three lost it misses 06:30, and that is the escalation trigger below.

> [!WARNING]
> Do not add workers during a load to catch up. Above eight workers the warehouse's write path becomes the limit and every worker slows down. Hold the late stores for the morning catch-up load instead.

## Before the load starts

- [x] Confirm the store gateway reports every store
- [x] Confirm the landing zone has free space for twice a normal night
- [ ] Confirm all eight workers report healthy
- [ ] Confirm yesterday's quality report has no open failure

## If the load falls behind

1. At 04:00, check the count of loaded rows. Below 3,000,000 means the load is behind.
2. Count the running workers. Seven is acceptable. Six or fewer is not.
3. If three or more workers are lost, page the data platform on call.
4. If the load cannot finish by 06:30, publish yesterday's dashboards with a banner and tell the buying teams before 07:30. A stale dashboard is acceptable. A wrong one is not.
5. Never restart the load from the beginning. Each source is loaded in order and a restart doubles the rows already written.

*All organizations in the sample documents are invented. Names and figures are illustrative.*
