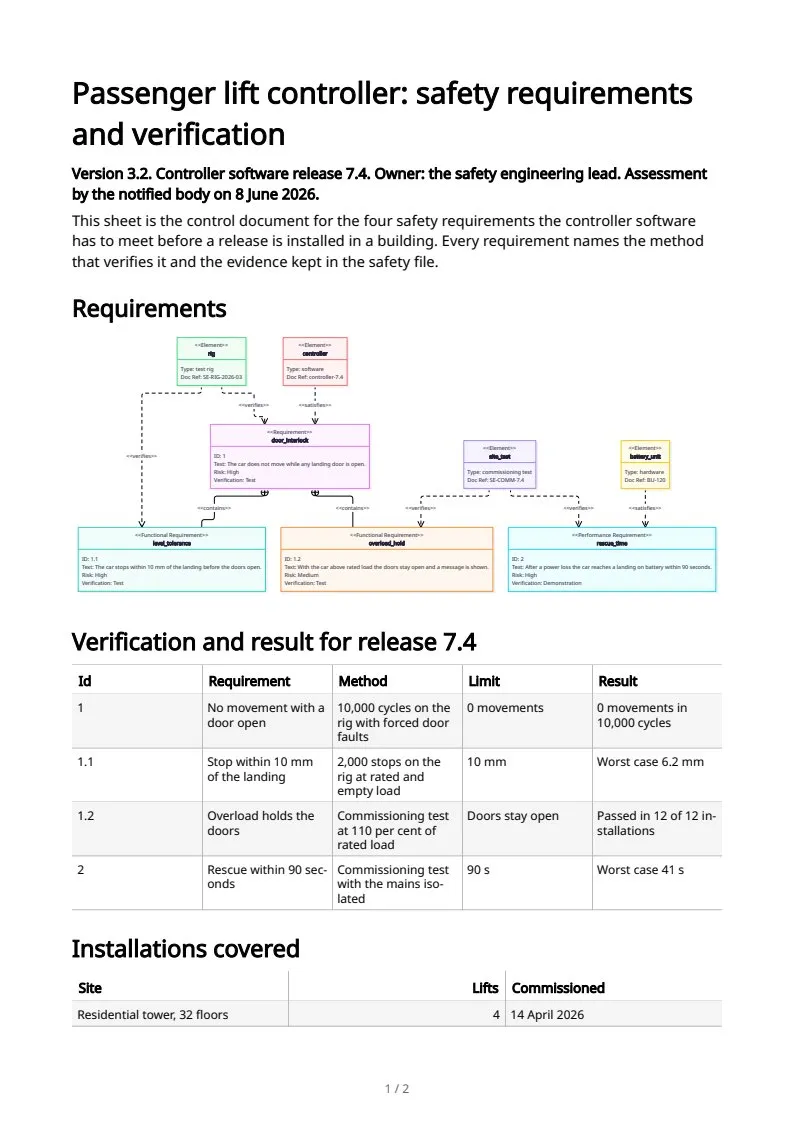

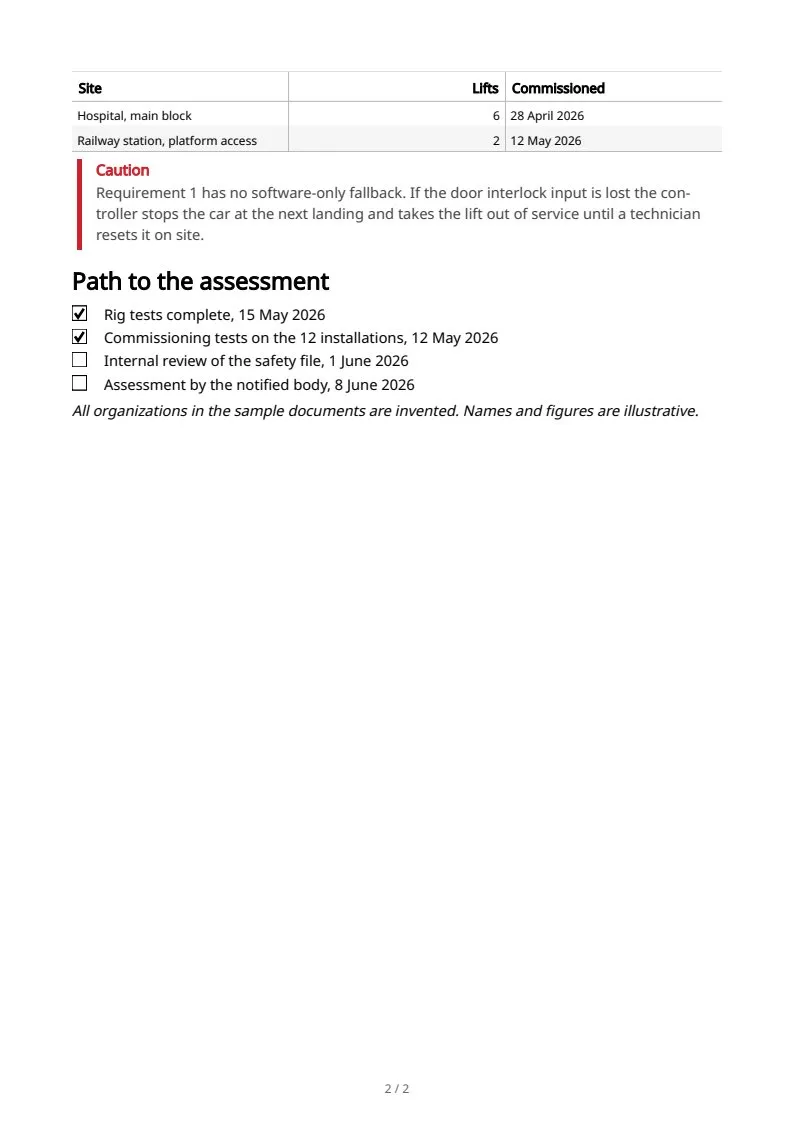

Mermaid requirement diagram in Markdown to PDF

---
title: Passenger lift controller, safety requirements and verification
author: Safety engineering
---

# Passenger lift controller: safety requirements and verification

**Version 3.2. Controller software release 7.4. Owner: the safety engineering lead. Assessment by the notified body on 8 June 2026.**

This sheet is the control document for the four safety requirements the controller software has to meet before a release is installed in a building. Every requirement names the method that verifies it and the evidence kept in the safety file.

## Requirements

```mermaid
requirementDiagram

requirement door_interlock {
  id: 1
  text: The car does not move while any landing door is open.
  risk: high
  verifymethod: test
}

functionalRequirement level_tolerance {
  id: 1.1
  text: The car stops within 10 mm of the landing before the doors open.
  risk: high
  verifymethod: test
}

functionalRequirement overload_hold {
  id: 1.2
  text: With the car above rated load the doors stay open and a message is shown.
  risk: medium
  verifymethod: test
}

performanceRequirement rescue_time {
  id: 2
  text: After a power loss the car reaches a landing on battery within 90 seconds.
  risk: high
  verifymethod: demonstration
}

element rig {
  type: test rig
  docref: SE-RIG-2026-03
}

element site_test {
  type: commissioning test
  docref: SE-COMM-7.4
}

element controller {
  type: software
  docref: controller-7.4
}

element battery_unit {
  type: hardware
  docref: BU-120
}

door_interlock - contains -> level_tolerance
door_interlock - contains -> overload_hold
rig - verifies -> door_interlock
rig - verifies -> level_tolerance
site_test - verifies -> overload_hold
site_test - verifies -> rescue_time
controller - satisfies -> door_interlock
battery_unit - satisfies -> rescue_time
```

## Verification and result for release 7.4

| Id | Requirement | Method | Limit | Result |
|:---|:------------|:-------|:------|:-------|
| 1 | No movement with a door open | 10,000 cycles on the rig with forced door faults | 0 movements | 0 movements in 10,000 cycles |
| 1.1 | Stop within 10 mm of the landing | 2,000 stops on the rig at rated and empty load | 10 mm | Worst case 6.2 mm |
| 1.2 | Overload holds the doors | Commissioning test at 110 per cent of rated load | Doors stay open | Passed in 12 of 12 installations |
| 2 | Rescue within 90 seconds | Commissioning test with the mains isolated | 90 s | Worst case 41 s |

## Installations covered

| Site | Lifts | Commissioned |
|:-----|------:|:-------------|
| Residential tower, 32 floors | 4 | 14 April 2026 |
| Hospital, main block | 6 | 28 April 2026 |
| Railway station, platform access | 2 | 12 May 2026 |

> [!CAUTION]
> Requirement 1 has no software-only fallback. If the door interlock input is lost the controller stops the car at the next landing and takes the lift out of service until a technician resets it on site.

## Path to the assessment

- [x] Rig tests complete, 15 May 2026
- [x] Commissioning tests on the 12 installations, 12 May 2026
- [ ] Internal review of the safety file, 1 June 2026
- [ ] Assessment by the notified body, 8 June 2026

*All organizations in the sample documents are invented. Names and figures are illustrative.*
