# Online ordering: what to build and what to buy

A bakery chain with forty shops in the Netherlands takes orders online. The map places each part of the service by how visible it is to the customer and how mature it is in the market.

```mermaid
wardley
title Online ordering
anchor Customer [0.95, 0.55]
component Order page [0.82, 0.62]
component Menu data [0.66, 0.42] label [-72, 4]
component Payments [0.58, 0.86]
component Delivery routing [0.44, 0.30] label [-104, 4]
component Oven schedule [0.32, 0.18] label [-30, 22]
component Cloud hosting [0.16, 0.90]
Customer -> Order page
Order page -> Menu data
Order page -> Payments
Order page -> Delivery routing
Delivery routing -> Oven schedule
Menu data -> Cloud hosting
Delivery routing -> Cloud hosting
evolve Delivery routing 0.62
note "Buy payments, do not build them" [0.70, 0.74]
```

The planned move is delivery routing: a hosted routing service replaces the custom code by the summer.

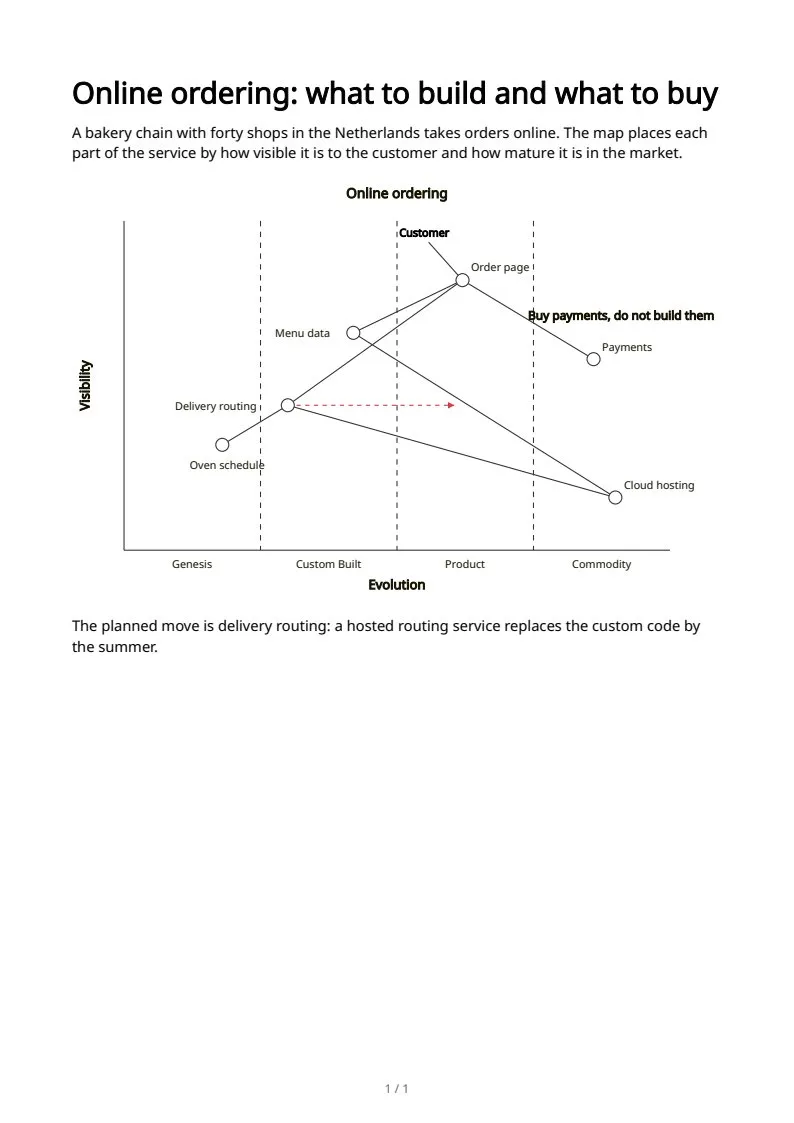

Rendered pages
