Micro QR and rectangular Micro QR in PDF

Small codes fit small spaces: Micro QR for tiny square marks and rectangular Micro QR for label edges.

Space-constrained codes: Micro QR for tiny square marks, rectangular Micro QR for label edges, auto-sized, fixed to a version or pinned to a height.

Open PDFOpen in editorMarkdown file

Markdown source

Markdown · 31 lines
# Compact codes

Micro QR takes a quarter of a QR's footprint, for short payloads such as a serial number:

```barcode microqr
A-4172
```

A fixed version, for a run of labels that must all be the same size:

```barcode
type: microqr
data: LOT-0426
version: M3
ec: M
```

Rectangular Micro QR fits where a square never will, on the edge of a vial or a cable tag:

```barcode rmqr
https://example.com/t/AB12
```

Pin the height and the width is chosen for you:

```barcode
type: rmqr
data: TUBE-0418-07 KEEP COLD
fixed-height: 9
ec: H
```

Rendered pages

PDF · 1 page · 14 KB

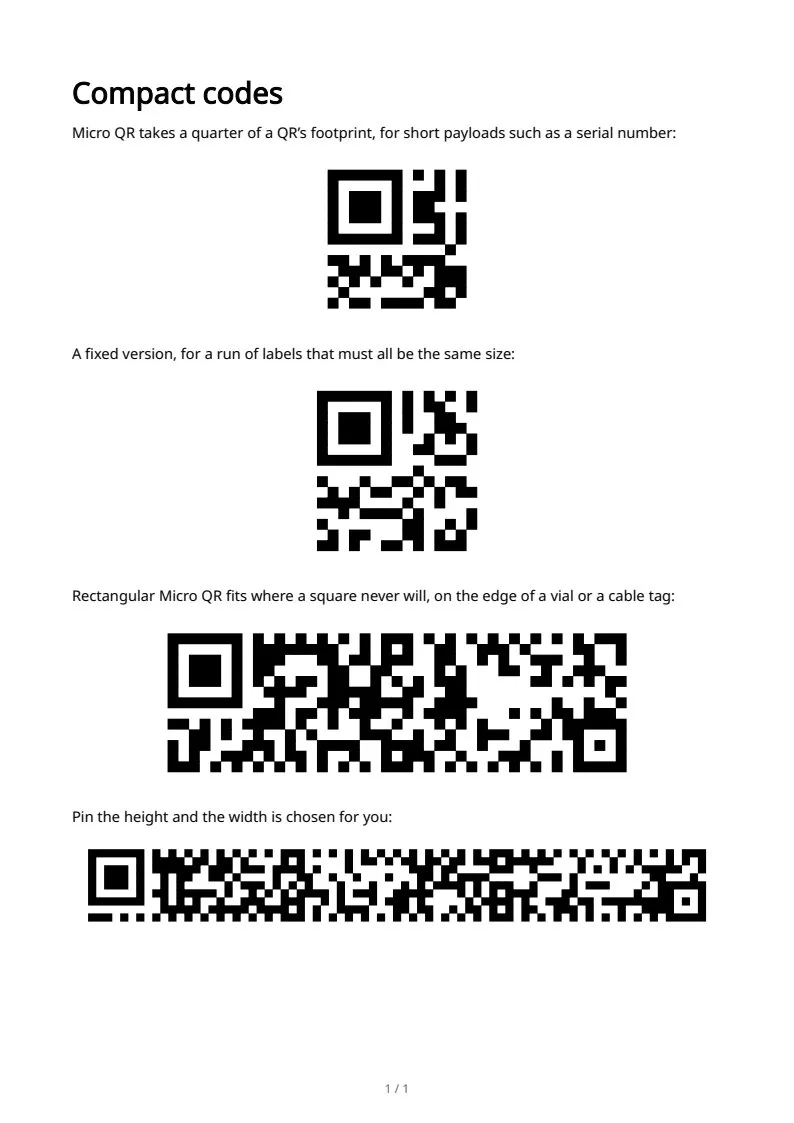

  1. Micro QR & rMQR, page 1 of 1

The sample documents describe invented organizations in several countries. All names and figures are illustrative.
