Boarding pass and event ticket from Markdown
A boarding pass and an event ticket each carry the code a gate scanner reads, as the document a traveler prints or shows.
A boarding pass with its PDF417 strip and an event ticket with an Aztec code, each laid out as the document a traveler prints or shows at the gate.
Markdown source
Markdown · 59 lines---
title: Boarding pass and event ticket
author: Travel desk
---
# Boarding pass
| | |
|:--|:--|
| **Passenger** | OKAFOR / AMARA |
| **Flight** | KL 0861 |
| **From** | Amsterdam, AMS |
| **To** | Tokyo Narita, NRT |
| **Date** | 15 September 2027 |
| **Boarding** | 13:50, gate F7 |
| **Departure** | 14:35 |
| **Seat** | 12A, window |
| **Class** | Economy, Y |
| **Booking** | EABC123 |
Show this code at security and at the gate:
```barcode
type: pdf417
data: M1OKAFOR/AMARA EABC123 AMSNRTKL 0861 258Y012A0042 100
ec: 5
width: 360
```
> [!NOTE]
> The gate closes 20 minutes before departure. Passengers with a connection in Tokyo collect their bags only if the next flight is on a separate ticket.
---
# Event ticket
**Coastal Cities Forum 2027, opening plenary**
| | |
|:--|:--|
| **Venue** | Convention center, hall A |
| **Date** | Wednesday 15 September 2027 |
| **Doors open** | 08:30 |
| **Starts** | 09:30 |
| **Seat** | Block C, row 12, seat 7 |
| **Ticket holder** | Amara Okafor, delegate |
| **Ticket number** | CCF27-A-004172 |
```barcode
type: aztec
data: CCF27-A-004172|OKAFOR/AMARA|HALL-A|C-12-7|2027-09-15T09:30
ec: 33
module-color: #1e3a5f
width: 180
```
This ticket is personal and is checked against photo identification at the door. It admits one person to the plenary and to the exhibition hall for the day.
*All organizations in the sample documents are invented. Names, numbers and codes are illustrative.*

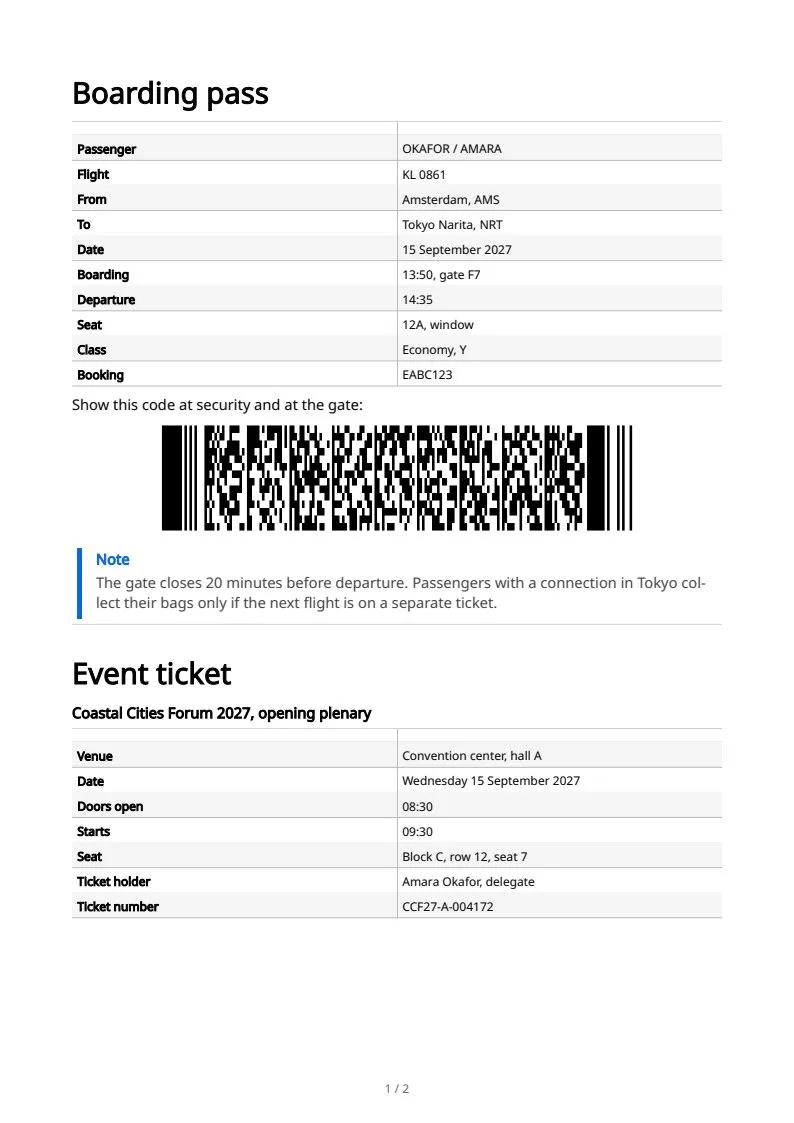

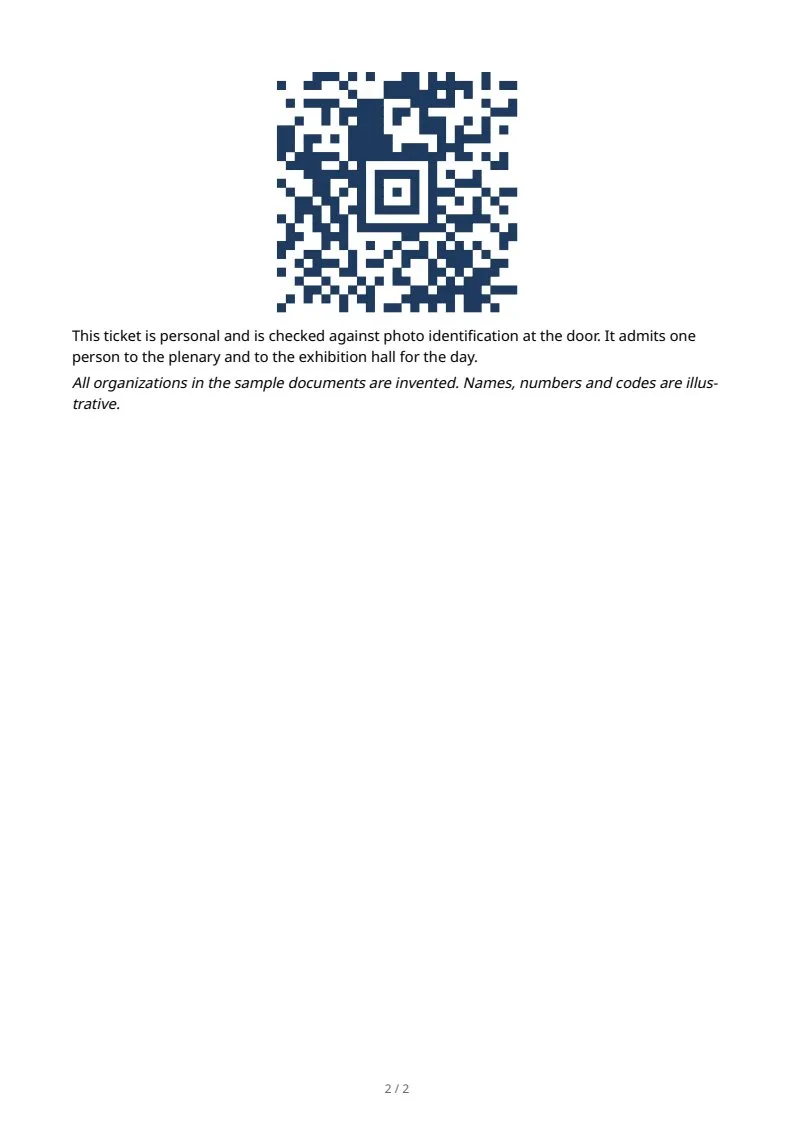

Rendered pages
PDF · 2 pages · 37 KB
The sample documents describe invented organizations in several countries. All names and figures are illustrative.
